[Fast&Furious guide] Setup a continuous integration process with TFS2013

The goal of this post is to present you (very quickly) how to set up a TFS server (give you the steps) in order to get a continuous build integration environment. We will also talk about continuous deployement. For all the details, please take a look at the bottom of this post for the reference links...

To summarize, the continuous integration process will help your team to merge their working copies of your application code and to discover faster when a build fails. The reasons why a build fail can be multiple:
- errors in code
- a test fails
- code analysis fails...

We will take a look at the following points:
- Configure the TFS Server
- Create a new build definition
- Insert tests in your build process
- Manage team project's check-in policies
- Deal with NuGet packages
- Automatically deploy your project with MsDeploy.

Setup your TFS 2013 server

First you need to have a server that will manage and build your code.
Install a TFS server and configure it (add your TFS Project and team members...)

Put your code under version control:

Manage your controllers / agents

Install the build service on the TFS build server.
Configure the build server: --> on the "Team Foundation Server Administration console", choose "build Configuration"
Create A New Controller and a new agent to manage your project (you can use one agent to build multiple projects). Each agent can run in parallel, so if you have many projects, you should configure more than one agent.

Everything is well explained here: TFS Server configuration

Setup your builds drop folders (on your publication server)

In order to publish your application / services (for testing or production purpose), you will have to set up a specific environment. On the desired environment server, create a publication folder that will receive the builds. For instance, it can be a folder representing a web site in IIS. We will see later how to manage the security for this folder.

Warning: The build agent fails on paths that exceed 259 characters.

Give permissions (READ / CHANGE) to the build server on this folder (ie, build server: $ALMSVR)

Setup your build definition in Team Web Access

The interesting part for us, is to configure a new build. This build definition will manage all the steps of the build process.

In Visual Studio, Team Explorer Menu:

Creating a Continuous Integration build process

Creating a Continuous Integration build process

Integrate tests in your build process

Tests can be run to validate a build process; these tests are often called Build Verification Tests (BVTs).
These tests can be of type:
- Unit Tests
- Coded UI tests
- Web performance Tests
- Load Tests
- Generic Tests

1- Develop your tests (in separate tests projects) and checkin it into your source control (preferably, you will name the projects containging your tests with a pattern like this: *Test*)

2- Create a new build definition: In Visual Studio , Team Explorer:

3- Specify the tests (assemblies) to embed in the integration process: (use a custom search pattern as bellow):

This search string will search recursively through directories looking for any DLLs that match *test*.dll in the Binaries directory.

4- Tests settings
You can select a test settings file to use during the build process:

5- (Advanced configuration) Select a specific agent to run the tests;

6- Save your build

7- Queue a new build

Check in policy

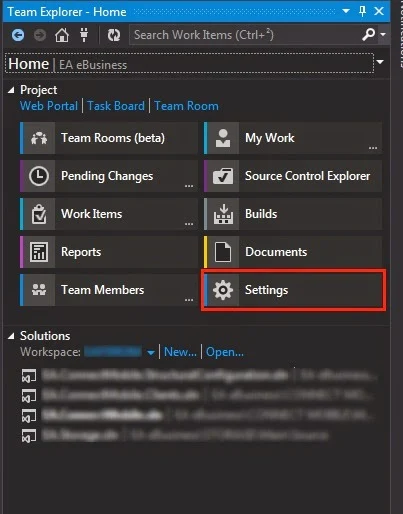

You can also configure / enforce some rules before to check in new code:

Here are example of rules that you can add for your project:
- set a check in comment
- the last build must be successfull
- code analysis rules should pass (you can also activate code analysis on your TFS Server - but you will activate it from your build definition)

Custom NuGet Packages

Add packages sources (documentation from NuGet website):

https://docs.nuget.org/consume/nuget-config-file

First, you can add your custom package repositories in Visual Studio\Options\Package Manager\

Then, you can configure the packages used by each project. It's recommend to manage packages at "solution" level (images below):

Below you can find a sample configuration file to add a new package repository, in order to download the packages during the build process:

The config file can be found at the root of your solution in the ".nuget" folder (this folder appear after you "managed packages for the solution": nuget config file "Nuget.config"

> Don't forget to checkin your .Nuget folder.

> But don't checkin the packages themselves ! They will be downloaded automatically on the TFS server.

Nuget config sample:

<?xml version="1.0" encoding="utf-8"?> <configuration> <config>  <add key="repositorypath" value="External\Packages" />  <add key="DefaultPushSource" value="http://MyRepo/ES/api/v2/package" /> </config>

Continuous delivering with MsDeploy

Another option with TFS Server, is to deploy automatically (after the build) your applications to a specific server (but for that the build must be successfull for sure !).

Here, we will use "MsDeploy" tool, but there are other (more powerfull, customisable...) tools like:

Microsoft Release Management

1- (Target publication server) Be sure to have or Add "Management Service" role to your server

2- (Target publication server) Install WebDeploy

3- Security:

Give access to the "administration web service" (NT Service\WmSvc) to the target publication folder.

- Update & Write rights

4- ? If needed ?: Add a registry key entry

Maybe you will need to add this registry key, if you still have "permission" issues when deploying your application:

reg add HKLM\Software\Microsoft\WebManagement\Server /v WindowsAuthenticationEnabled /t REG_DWORD /d 1

5- Generating a Publish profil

You can generate a publish profil (the one that will be used by MsDeploy) in Visual Studio; take a look at the following screenshots:

You have to checkin this profil file into your source code control.

If you want to publish several projects from your solution, you have to duplicate the generate a "publish" file with THE SAME NAME for every of these projects (see screenshot below):

6- Setup the deploy command line in your build definition:

By default, WebDeploy uses HTTPS so normally you would need a certifcate installed on your publishing server.

You can override this behavior, allowing auto generated certificates and using integrated authentication.

MsDeploy command line parameters:

- Allow auto generated certificates: /p:AllowUntrustedCertificate=true

- Use integrated authentication: /p:AuthType=NTLM username="" password=""

Full MsDeploy command line sample:

/p:DeployOnBuild=True /p:PublishProfile="Test_PublishWebServices" /p:AllowUntrustedCertificate=true /p:AuthType=NTLM /p:username="" /p:password=""

You have noticed that we reference the publish profil in our command line.

References

TFS integration:

http://boldradius.com/blog-post/UwOLcQEAAJV04Pl3/automating-builds-with-tfs-build

Nuget package restore:

https://docs.nuget.org/consume/package-restore/team-build

Deploy and configure a build server:

https://msdn.microsoft.com/en-us/library/ms181712.aspx

MsDeploy command line:

http://www.asprangers.com/post/2013/09/24/Web-Deploy-command-line-(msdeployexe)-Scenario-bash.aspx

Adding TFS checkin policy:

https://msdn.microsoft.com/en-us/library/ms181459(v=vs.100).aspx

InRelease, Continuous delivering:

https://www.visualstudio.com/products/release-management-for-microsoft-visual-studio-vs

http://almsweden.com/magnust/2013/08/22/microsoft-includes-inrelease-deployment-tool-in-tfs-2013/

http://www.incyclesoftware.com/inrelease/blog/

[VIDEO] Release Management - Configuring release Pipeline:

http://www.incyclesoftware.com/2014/10/video-release-management-configuring-the-release-pipeline/
